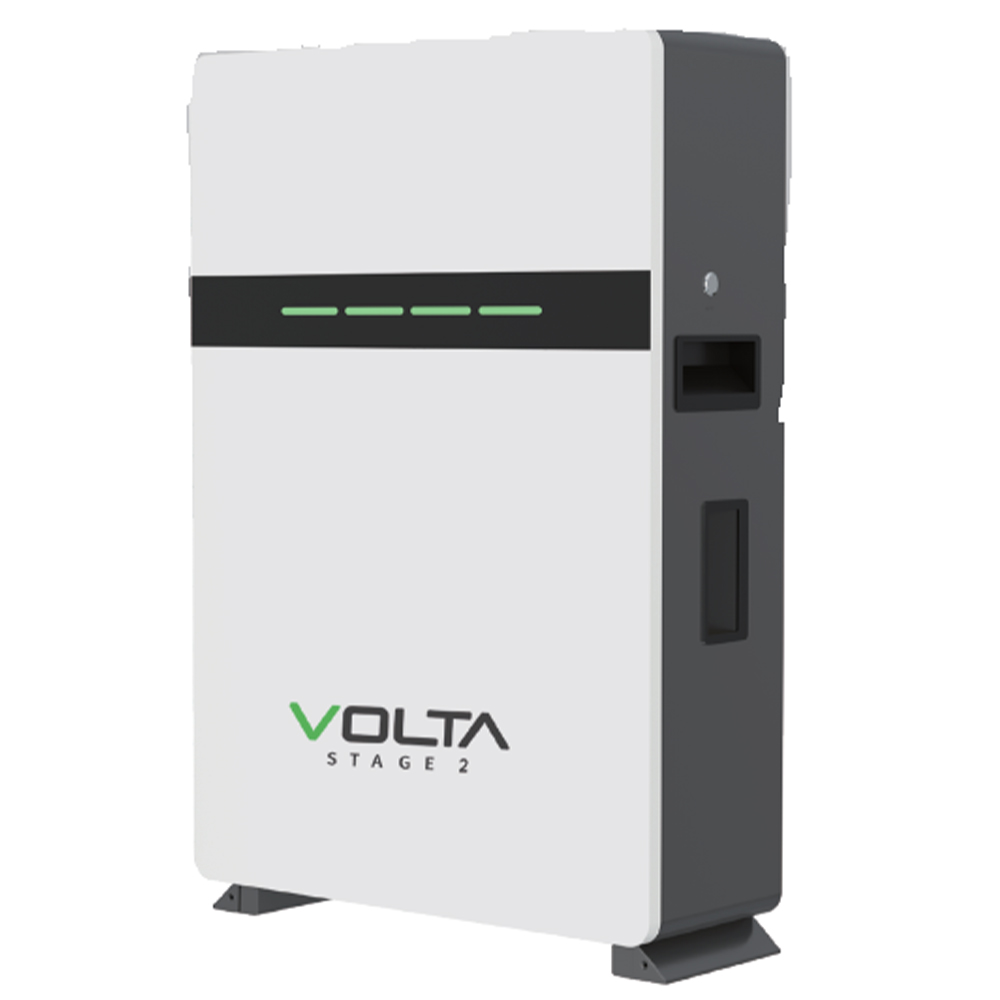

Volta 10,24KW Lithium Ion Battery

Battery Type: LiFePO4

Product name: 10kwh Powerwall for solar energy storage system

Battery: 51.2V 200Ah LiFePO4 battery

Compatible Inverter brand: Growatt,Sofar, Solis,Voltronic, etc

Parallels: Available to make 5 parallels

Usage: appliances in home/office

Dimension: 710*670*188m

Cycle life: 6000 times at 80%DOD

Cell type: 3.2v 100ah Prismastic Cell Lifepo4

Warranty: 5 years

Model

ES-BOX5

Battery Type

LiFePO4

Energy

10240Wh

Rated Capacity

200Ah

Rated Voltage

51.2V

Battery cell

Square Cube Prismatic Pouch 3.2V 200Ah Battery Cell

Configuration (*S*P)

16S1P

Disharge Cut-off Protect Voltage

40V

Charge Cut-off Protect Voltage

58.4V

Max. Charge Current

100A

Max. Discharge Current

100A

Communication Port

CAN, RS485

Compitable Inverter Brand

SMA, Growatt, Solax, Solis,DEYE,Sungrow, Sofar, Voltronic, Goodwe, etc.

Parallel

Max. 8 units in Parallels to get 81kwh.

Cycle life

6000-8000 times

L*W*H (mm)

673*618*193

Net Weight (KG)

83KG

Cooling

Natural cooling

Environment

Indoor

Mounting options

Wall mount

Discharge Temperature (℃)

-10℃~+60℃

Charge Temperature (℃)

0℃ ~+45℃

Storage Conditions

–20°C to 30°C (–4°F to 86°F)

Up to 95% RH, non-condensing

State of Energy (SoE): 25% initial

Maximum Elevation

3000 m (9843 ft)
