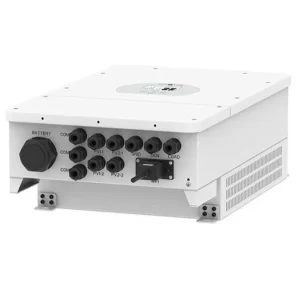

The SunSynk 12kW three-phase hybrid Inverter is the ideal inverter for managing power flow from multiple sources such as solar, main electrical grid, and generator for residential or commercial purposes. This inverter incorporates an inverter, charger, 2 x MPPT charge controllers, as well as WiFi capability.
Main Features:
Rated power – 12,000 W
Max AC Power (1 second) – 24,000 W
DC Voltage – 48V
Max charge/discharge current – 240 A
Max. Cont. AC Pass-through current: 45A
2 x MPPT
Several AC inputs for Generator, Grid, etc.
Comes with the Wi-Fi logger
The Sunsynk Inverter is a highly efficient power management tool that manages power coming from multiple sources such as solar, mains grid and generator and then effectively stores and releases power as required.
Solar input:
Max DC input power: 15,600 W
Max DC input voltage: 550V
2 x MPPT charge controller
No. of strings per MPPT: 2 / 2
Operating modes:
Battery only
Grid-tie only
Hybrid
Off-grid
Other Features
Battery charger adjustable for both Lead Acid and Li-ion batteries
Works parallel on or off-grid
Three phase
Anti-islanding
Natural cooling- IP65 protection
Compact and light design for easy installation
Transformer-less GT technology
Built-in protection features
Built-in anti-overflow function
25 years lifespan
UPS / Transfer time <= 10ms
Weight: 45 kg
Up to 16 units can be paralleled
