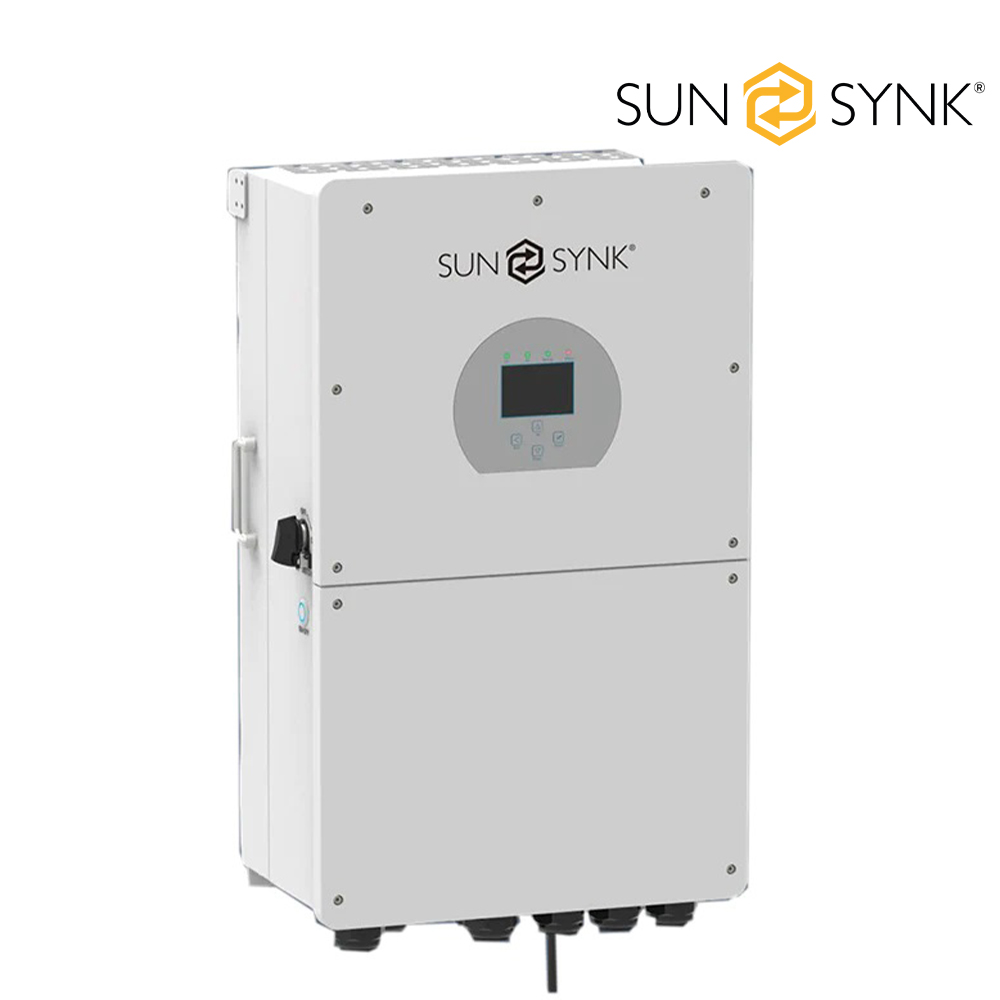

SUNSYNK 16KW SINGLE PHASE INVERTER

We have taken the Sunsynk Hybrid Inverter to the highest level. Our new Sunsynk MAX is the most powerful low-voltage inverter in the world, achieving a maximum output power of 16kW and battery charge current of 275A. This power management tool allows the user to hit those ‘parity’ targets by managing power-flow from multiple sources such as solar, mains power (grid) and generators, and then effectively storing and releasing power as and when utilities require.

Features:

• Supporting Wi-Fi or GSM monitoring
• Visual power flow screen
• Parallel/Multi invert function grid-tied and off-grid
• Compatible with main electrical grid voltages or power generators
• Self-consumption and feed-in to the grid
• Auto restart while AC is recovering
• Auto earth bond feature (Via a relay)
• Fully programmable controller
• Programmable supply priority for battery or grid
• Programmable multiple operation modes: on-grid/off-grid & UPS
• Configurable battery charging – current/voltage based on the application
• Configurable AC / solar / generator charger priority by LCD setting
• Overload/over-temperature/short-circuit protection
• Smart battery charger design for optimized battery protection
• Limiting function installed to prevent excess power overflow to grid
• Colourful touch LCD, IP65 protection degree
• DC couple and AC couple to retrofit existing solar system
• Max. 16 inverters in parallel; Support multiple batteries parallel
• Max. charging/discharging current of 190A
• 16kW super hybrid inverter
• Support storing energy from diesel generator

Battery Input Data:

• Battery type: Lead-acid or Lithium-ion
• Battery Voltage Range: 43~60V
• Max. Charging Current: 275A
• Max. Discharging Current: 300A
• Charging Curve: 3 Stages / Equalisation
• External Temperature Sensor: Yes
• Charging Strategy for Li-Ion Battery: Self-Adaptation to BMS

PV String Input Data:

• Max. DC Input Power: 18000W
• Max PV Input Voltage: 450V
• MPPT Range: 250V~450V
• Start-up Voltage: 150V
• PV Input Current: 22A + 22A
• Max. PV Isc: 26A + 26A
• No. of MPPT / Strings Per MPPT: 3/2

AC Output Data:

• Max. On-Grid AC Power: 16000W
• Max. Off-Grid AC Power: 13000W
• Peak Power (off-grid): 2 times of rated power, 10 S
• AC Output Rated Current: 65A
• Max AC Current: 70A
• Max Continuous AC Passthrough: 200A
• Frequency Range: 45Hz ~55Hz
• Voltage Range: 211V ~ 264V
• Grid Type: Single-Phase
• Current Harmonic Distortion: THD<3%(Linear load<1.5%)

Efficiency:

• Max. Efficiency: 97.6%
• Euro Efficiency: 97%
• MPPT Efficiency: 99.9%

Protection:

• Integrated: PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Surge protection

 Certifications and Standards:

• Grid Regulation: VDE 0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IEC61727, RD1699:2011, XP C15-712-3:2019-05
• Safety EMC / Standard: IEC62109-1, IEC62109-2, EN61000-6-1, EN61000-6-3

  General Data:

• Operating Temperature Range: -25~55°C
• Cooling: Fan
• Noise: <30dB
• Communication with BMS: RS485; CAN
• Weight: 34.5Kg
• Size (mm): 422W x 702H x 281D
• Protection Degree: IP65
• Installation Style: Wall-mounted
• Warranty: 5 Years
