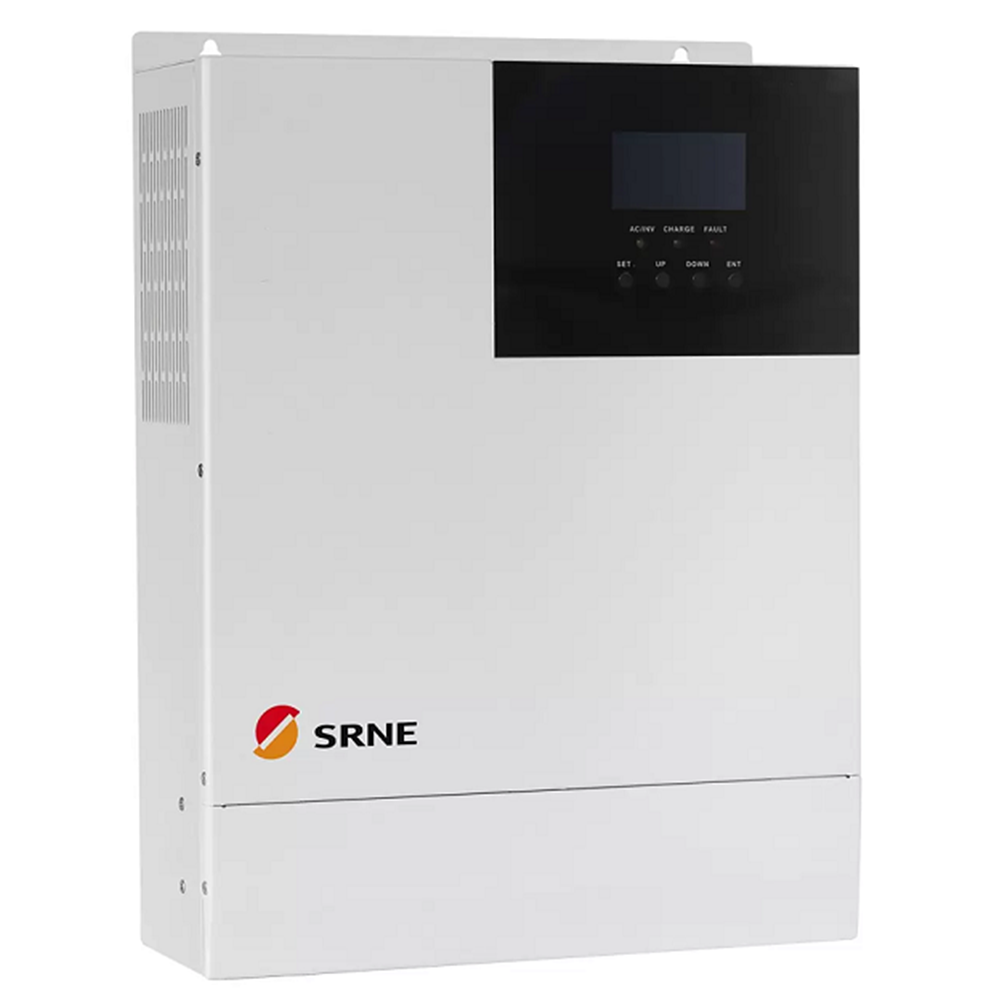

SRNE: Inverter 3.3Kw Off Grid (SR-HF2430S80-H)

AC Mode
• Rated Input Voltage: 220VAC / 230VAC
• Input Voltage Range: 170VAC to 280VAC; 90VAC to 280VAC
• Frequency: 50Hz / 60Hz (Auto detection)
• Overload / Short Circuit Protection: Circuit Breaker
• Efficiency: >95%
• Conversion Time: 10ms
• Maximum Bypass Overload Current: 30A

Inverter Mode
• Output Voltage Waveform: Pure Sine Wave
• Rated Output Power: 3300W
• Power Factor: 1
• Rated Output Voltage: 230VAC
• Output Frequency: 50Hz / 60Hz
• Efficiency: >92%
• Loaded Motor Capability: 2HP
• Output Short Circuit Protection: Circuit Breaker
• Bypass Breaker: 30A
• Rated Battery Input Voltage: 24VDC (Min Start Voltage of 22VDC)
• Battery Voltage Range: 20VDC – 33VDC

AC Charging
• Battery Type: Lead Acid / Lithium
• Maximum Charging Current: 80A
• Charging Voltage Range: 20VDC to 33VDC
• Short Circuit Protection: Circuit Breaker and Blown Fuse
• Circuit Breaker: 30A

PV Charging
• Maximum PV Open Circuit Voltage: 500VDC
• PV Operating Voltage Range: 120VDC to 500VDC
• MPPT Voltage Range: 120VDC to 450VDC
• Maximum Input PV Power: 4000W
• PV Charging Current Range: 0A to 80A (Adjustable)
• Charging Short Circuit Protection: Blown Fuse
• Wiring Protection: Reverse Polarity Protection

Environment Limit
• Ingress Protection: IP20
• Operating Temperature Range: -15°C to +55°C
• Humidity Range: 5% to 95% (Conformal Coating Protection)
• Cooling: Forced Air Cooling, Variable Speed Fan (<60dB)
• Communication: USB / CAN / RS485(WIFI/GPRS) / Dry Node Control
