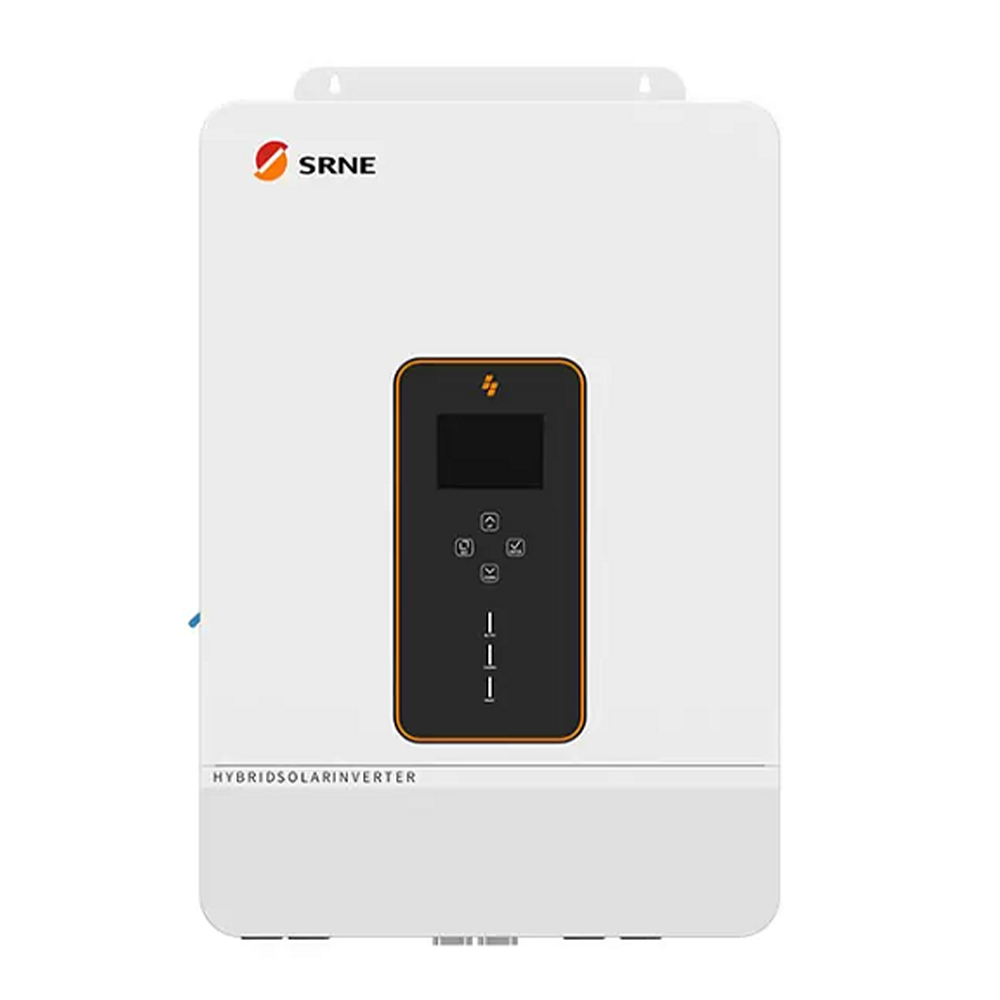

SRNE-10KW-Inverter-ASF48100S200-H-1

SRNE 10KVA 20000W Off Grid Hybrid Solar Inverter 48V Inverter (180A MPPT)

Efficient

• Dual MPPT with up to 99.9% efficiency
• Up to 22A PV input current perfect for high power modules

Reliable

• Outputs high quality pure sine wave AC power
• 8-10kW load power to meet the needs of most households

User-friendly

• Industrial design with a modern aesthetic look
• Easy to install and simple to use

Safety

• 360 degrees of security from hardware to software

• EU and North American safety approvals

All-in-one

• Solar Charger Controller up to 200A charging current
• Support for Li-ion battery BMS communication

Intelligent

• Exclusive Li-ion battery BMS dual activation
• Time-slot function to save cost with peak-valley tariff

Rated Output Power: 10,000W
Max.Peak Power: 20,000W
Rated Output Voltage: 230VacL1/N/PE single-phase
Load Capacity of Motors: 6HP
Rated AC Frequency: 50/60Hz
Waveform: Pure Sine Wave
Switch Time: 10mstypical
Battery Type: Li-ion / Lead-Acid / User Defined
Rated Battery Voltage: 48Vdc
Voltage Range: 40-60Vdc
Max.MPPT Charging Current: 200A
Max.Mains/Generator Charging Current: 120A
Max.Hybrid Charging Current: 200A

PV INPUT
Num. of MPP Trackers: 2
Max.PV array power: 11,000W
Max.input current: 22/22A
Max.Voltage of Open Circuit: 500Vdc
MPPT Voltage Range: 125-425Vdc

MAINS / GENERATOR INPUT
Input Voltage Range: 90-270Vac
Frequency Range: 50/60Hz
Bypass Overload Current: 32A

EFFICIENCY
MPPT Tracking Efficiency: 99.9%
Max. Battery Inverter Efficiency: 92%

GENERAL

Dimensions
620*435*130mm2*1.4*0.4ft
Weight: 21kg44lb
Protection Degree: IP20Indoor Only
Operating Temperature Range: -15~55,>45 derated5~131>113 derated
Noise: <60dB
Cooling Method: Internal Fan

Warranty: 2 Years

COMMUNICATION
Embedded Interfaces: RS485 / CAN / USB / Dry contact
External Modules Optional: Wi-Fi / GPRS
