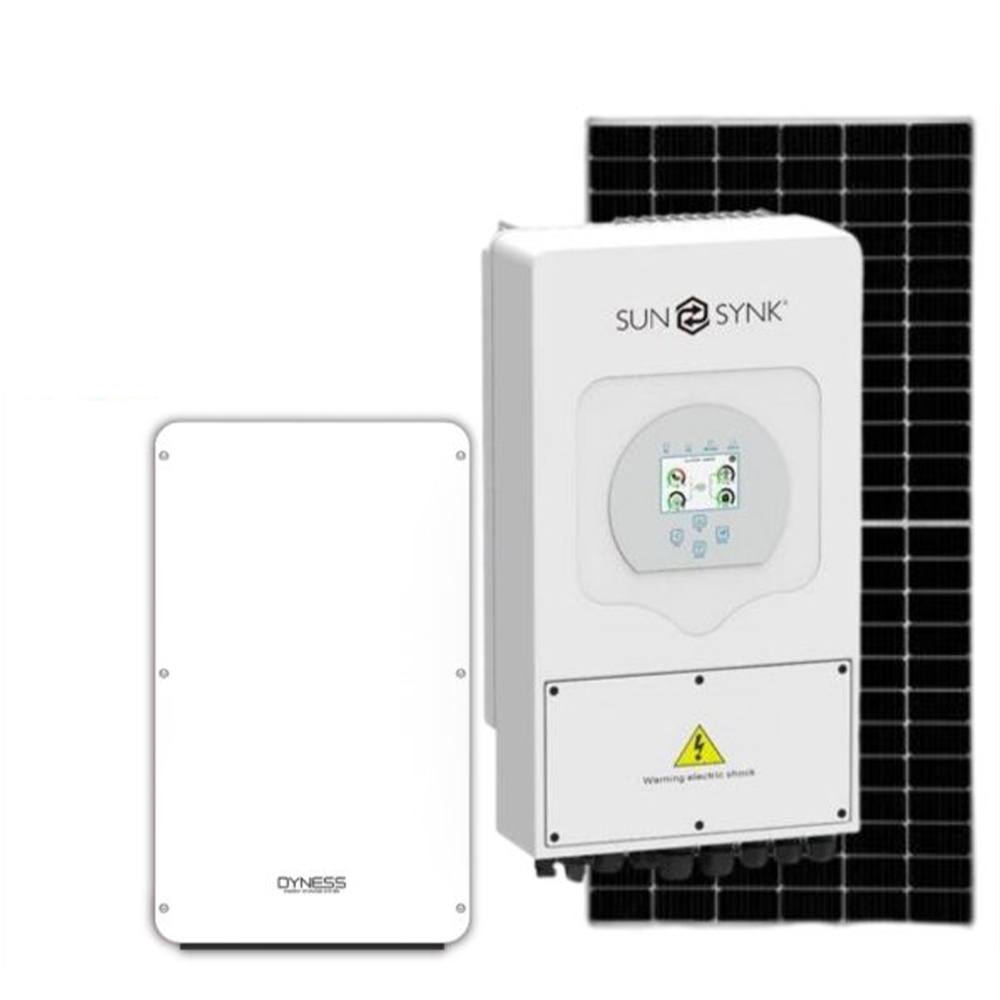

5KW SUNSYNK POWERBOX PRO 10.24

This Package Includes:
1 x Sunsynk 5kw Hybrid Inverter
10 x 455W Solar Panels
1 x Dyness Powerbox Pro 10.24kwh
100 x 6mm Solar Cable
1 x Ac Protection + Changeover
1 x Pvc2 Combiner
1 x Dc Disconnector
10 x Mc4 Connectors
2 x 25mm Battery Cable
4 x 25mm Lugs
1 x SL-320 Spotlights FREE!
COMPLETE MOUNTING SYSTEM FOR TILE/IBR ROOF

SUNSYNK DESCRIPTION:
SUNSYNK

Higer yields.

Improve self-consumption ratio up to 80%, reducing your electricity bill.
DC/AC ratio up to 1.3, completely suitable for double-side PV modular.
Two MPPT design, Max. efficiency of 97.6%.
User-friendly.

LCD Touch screen and buttons, easy operation.
Compatible with lithium-ion battery and lead acid battery.
Web browser and mobile App monitoring supported.
Reliable.

PV lighting protection, Anti-islanding protection, Leakage current protection etc.
Support store energy from DG when needed, ensure the system working within 7*24H.
IP65 protection degree, adapt to indoor and outdoor using.
Automatically switch from on-grid to off-grid mode within 5ms.
Zero exporting function, fast reaction within 200ms in zero export mode.
Smart.

Programmable charging and discharging schedule.
Both wind turbines and solar panels can be connected as DC input power.
Max. 16 units can be paralleled for higher system power.
Retrofitting of existing solar system to energy storage system.
Battery Input Data

Battery Type: Lead-acid or Li-lon
Battery Voltage Range (V): 40-60V
Max. Charging Current (A): 120A
Max. Discharging Current (A): 120A
Charging curve: 3 Stages/Equalization
External Temperature Sensor: Optional
Charging Strategy for Lithium Battery: Self-adaption to BMS
PV String Input Data

Max. DC Input Power (W): 6500W.
PV input Voltage (V): 370V (100V-500V).
MPPT Range (V): 125-425V.
Start-up Voltage (V): 150V.
PV Input Current (A): 11A + 11A.
No. of MPPT Trackers: 2
No. of Strings Per MPPT Tracker: 1+1.
AC Output Data

Rated AC Output and UPS Power (W): 5000W
Max AC Output Power (W): 5500W
Peak Power(off-grid): 2 times of rated power, 10 S.
AC Output Rated Current(A): 21.7.4A
Max.AC Current(A): 25A
Max Continuous AC Pass-through(A): 35A.
Output Frequency and Voltage: 50Hz; 240Vac,
Grid Type: THD<3%(Linear load<1.5%). Current Harmonic Distortion: THD<3% (Linear load<1.5%). Efficiency Max. Efficiency: 97.60% Euro Efficiency: 96.50% MPPT Efficiency: 99.90% Protection PV Arc Fault Detection: Integrated (Except European Type) PV Input Lightning Protection: Integrated Anti -islanding Protection: Integrated PV String Input Reverse Polarity Protection: Integrated Insulation Resistor Detection: Integrated Residual Current Monitoring Unit: Integrated Output over Current Protection: Integrated Output Shorted Protection: Integrated Output over Voltage Protection: Integrated Certifications and Standards Grid Regulation: UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IE61727 Safety Regulation: IEC62109-1, IEC62109-2 EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B General Data Operating Temperature Range ( C ): -25—60 C , >45 C Derating
Cooling: Fan
Noise (dB): <30 Communication with BMS: RS485; CAN Weight (kg): 20.5 Size (mm): 580 X 330 X 208mm Protection Degree: IP65 Installation Style: Wall-mounted Warranty: 5 years
