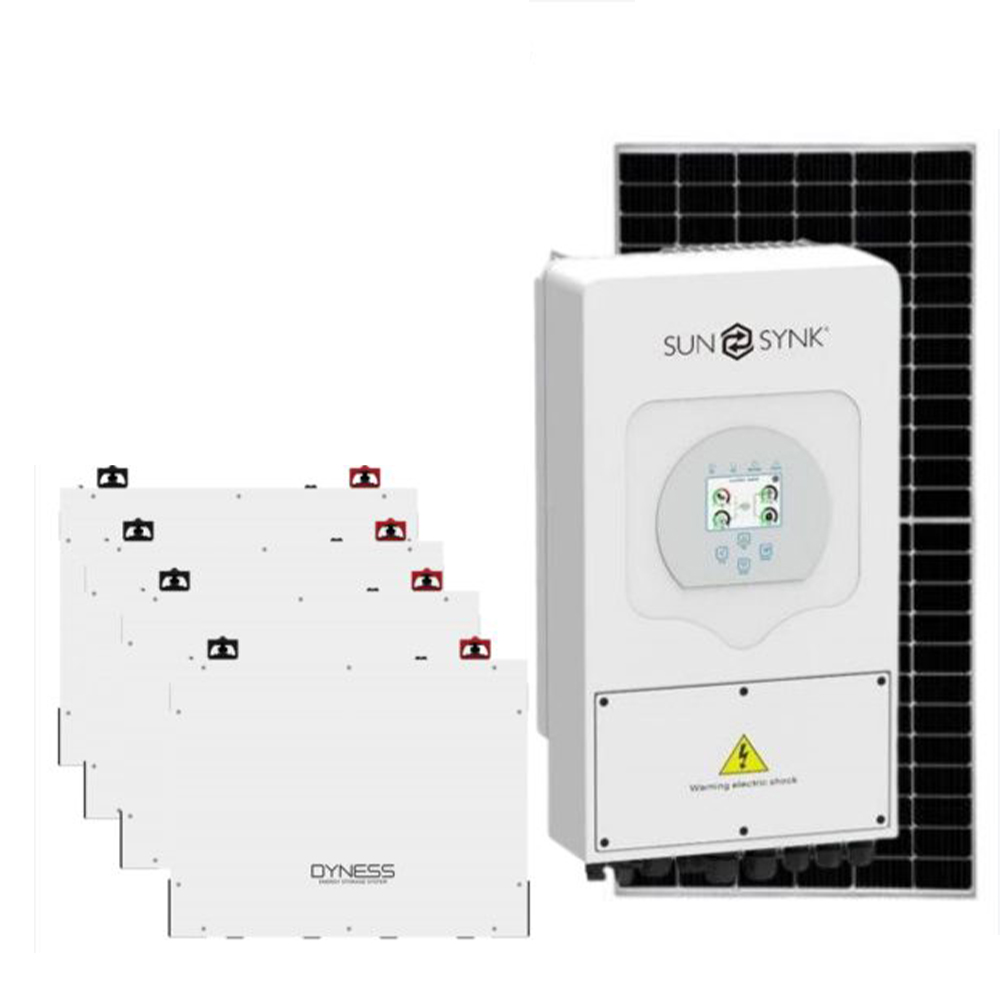

This Package Includes:
1 x Sunsynk 5kw Hybrid Inverter
12 x 455W Solar Panels
4 x Dyness 4.8KWH
100 x 6mm Solar Cable
1 x Ac Protection + Changeover
1 x Pvc2 Combiner
1 x Dc Disconnector
10 x Mc4 Connectors
2 x 25mm Battery Cable
4 x 25mm Lugs
2 x SL-320 Spotlights FREE!
COMPLETE MOUNTING SYSTEM FOR TILE/IBR ROOF
SUNSYNK DESCRIPTION:
SUNSYNK
Higer yields.
Improve self-consumption ratio up to 80%, reducing your electricity bill.
DC/AC ratio up to 1.3, completely suitable for double-side PV modular.
Two MPPT design, Max. efficiency of 97.6%.
User-friendly.
LCD Touch screen and buttons, easy operation.
Compatible with lithium-ion battery and lead acid battery.
Web browser and mobile App monitoring supported.
Reliable.
PV lighting protection, Anti-islanding protection, Leakage current protection etc.
Support store energy from DG when needed, ensure the system working within 7*24H.
IP65 protection degree, adapt to indoor and outdoor using.
Automatically switch from on-grid to off-grid mode within 5ms.
Zero exporting function, fast reaction within 200ms in zero export mode.
Smart.
Programmable charging and discharging schedule.
Both wind turbines and solar panels can be connected as DC input power.
Max. 16 units can be paralleled for higher system power.
Retrofitting of existing solar system to energy storage system.
Battery Input Data
Battery Type: Lead-acid or Li-lon
Battery Voltage Range (V): 40-60V
Max. Charging Current (A): 120A
Max. Discharging Current (A): 120A
Charging curve: 3 Stages/Equalization
External Temperature Sensor: Optional
Charging Strategy for Lithium Battery: Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W): 6500W.
PV input Voltage (V): 370V (100V-500V).
MPPT Range (V): 125-425V.
Start-up Voltage (V): 150V.
PV Input Current (A): 11A + 11A.
No. of MPPT Trackers: 2
No. of Strings Per MPPT Tracker: 1+1.
AC Output Data
Rated AC Output and UPS Power (W): 5000W
Max AC Output Power (W): 5500W
Peak Power(off-grid): 2 times of rated power, 10 S.
AC Output Rated Current(A): 21.7.4A
Max.AC Current(A): 25A
Max Continuous AC Pass-through(A): 35A.
Output Frequency and Voltage: 50Hz; 240Vac,
Grid Type: THD<3%(Linear load<1.5%).
Current Harmonic Distortion: THD<3% (Linear load<1.5%).
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%
Protection
PV Arc Fault Detection: Integrated (Except European Type)
PV Input Lightning Protection: Integrated
Anti -islanding Protection: Integrated
PV String Input Reverse Polarity Protection: Integrated
Insulation Resistor Detection: Integrated
Residual Current Monitoring Unit: Integrated
Output over Current Protection: Integrated
Output Shorted Protection: Integrated
Output over Voltage Protection: Integrated
Certifications and Standards
Grid Regulation: UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IE61727
Safety Regulation: IEC62109-1, IEC62109-2
EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B
General Data
Operating Temperature Range ( C ): -25—60 C , >45 C Derating
Cooling: Fan
Noise (dB): <30
Communication with BMS: RS485; CAN
Weight (kg): 20.5
Size (mm): 580 X 330 X 208mm
Protection Degree: IP65
Installation Style: Wall-mounted
Warranty: 5 years
DYNESS 4.8KWH BX48100 DATA SHEET
BX48100 PART 2
DYNESS BX48100 USER MANUAL
COMPATIBLE LIST
WARRANTY POLICY
DYNESS BX48100 DESCRIPTION:
4.8kWh Lithium-ion Battery BX48100 LFP Module pack comes with a battery management system that protects against overcharging, over-discharging and short circuits. The BX48100 4.8kwh lithium battery provides 48V of continuous output power for superior performance and reliability. Introducing the Dyness 4.8kwh lithium battery, our newest energy storage solution for renewable energy systems. BX48100 4.8kwh is the perfect power backup. At a fraction of the weight and volume of other battery types, it’s ideal for projects that call for installation space and easy transportability. The Dyness is a 4.8 kWh lithium battery suitable for use with renewable energy sources, such as solar panels. The Dyness 4.8kwh lithium battery BX48100 LFP Module is a 4.8 kWh lithium battery that stores electricity generated by renewable energy sources, and stores it for later use when required. It is designed to offer the user complete independence from the National Grid.
The Dyness 4.8kwh lithium battery can be wall-mounted or stackable with battery brackets.
DYNESS
Dyness owns the most sophisticated team with top class R&D experts from the industry. We devote ourselves to responsible engineering of the safest, greenest possible future for you and your family.
Our Powerbox will store excess power produced from solar in daytime, it can be used at night to increase greater energy self sufficiency and security, or used at peak time to reduce household electric charges. Dyness brings our latest Battery Energy Storage System (BESS) Powerbox to Australia at affordable price and top class quality.
Model: BX48100 LFP Battery Module.
Specifications
Voltage: 48V
Nominal capacity: 100Ah
Rated energy: 4800Wh
Cycle life: 6000 Cycles (25℃,0.5C RATE,90%DOD,EOL60%)
Rated discharge current: 30A
Maximum continuous discharge current: 100A
Maximum discharge current: 120A 3S
Rated charging current: 30A
Maximum continuous charging current: 100A
Lower limit of discharge voltage: 42±0.1V
Operating temperature
Recharge: 0℃~+55℃
Discharge: -20℃~+55℃
Working humidity: 5%~85% RH
Storage temperature: -10℃~+35℃
