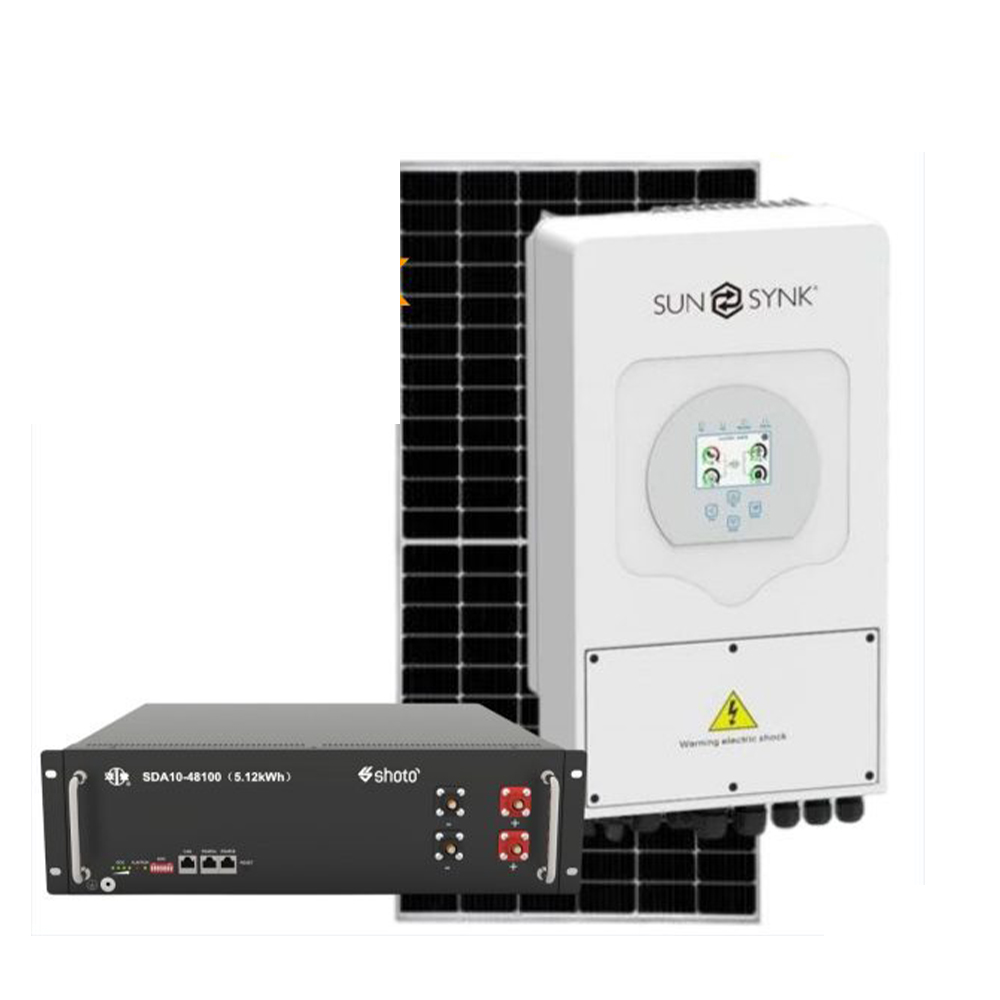

5KW SUNSYNK 5.12KWH

This Package Includes:
1 x SUNSYNK 5kw Inverter
8 x 455W Solar Panels
1 x Shoto 5.12kw Battery
100 x 6mm Solar Cable
1 x Ac Protection + Changeover
1 x Pvc2 Combiner
10 x Mc4 Connectors
2 x 35mm Lugs
1 x Dc Disconnector
2 x 35mm Battery Cable
1 x Lithium Cabinet
COMPLETE MOUNTING SYSTEM FOR TILE/IBR ROOF

Shoto 5.12kwh Lithium-Ion Battery with more than 5000 cycles with 90% DOD and 10+ years design life.

5.12kwh Lithium-Ion Battery.
Model: 51.2-100.
Nominal Capacity (kWh): 5.12.
Depth of Charge: 90%.
Usable Capacity (kWh): 4.6.
Cycle Life: ≥5000 @25 Cº.
Charge Voltage (V): 57.6.
Discharge Voltage (V): 48.
Nominal Voltage (V): 51.2.
Max Parallel Quantity (Pcs): 16.
Charge/Discharge Current (A): Recommend 50 (0.5C) Max 100 (1C).
Communication Port: RS485 & CAN.
Weight (Kg): 43.
Dimensions (W*H*D) mm: 442*133*420.
Certificate: TUV(IEC 62619)/CE-EMC/UN38.3.

shoto

SHOTO
A leading integration service provider of green energy storage in the era of big data.Using cutting-edge energy technology,with our customers around the world,shares a green world. We actively explore,and discover a new world with ever-growing energy.For Telecom Industry,Shoto has a complete series of energy storage solutions, and provides solid green energy security.For Power Industry,we are becoming a core hub that creates future smart grid networks.For Transportation Industry,Shoto is supplying new, clean and high-efficiency power energy,and offers infinite assistance to social development,and makes green travel possible.In Recycling Industry, Shoto firstly constructs the recycling industry chains for lead acid battery,which makes energy to be recyclable and renewable,and reduces resource loss,and recovers healthy earth. We pursue perfection,and create an enterprise with strong force for sustainable development; THe company is the only “National Eco-friendly Enterprise” industry-wide, “National Key High-tech Industry Group”, one of “China Top 100 Electronic Information Enterprises” and one of “World Top 500 New Energy Enterprises”.

SUNSYNK 5KW Data Sheet
SUNSYNK DESCRIPTION:
SUNSYNK

Higer yields.

Improve self-consumption ratio up to 80%, reducing your electricity bill.
DC/AC ratio up to 1.3, completely suitable for double-side PV modular.
Two MPPT design, Max. efficiency of 97.6%.
User-friendly.

LCD Touch screen and buttons, easy operation.
Compatible with lithium-ion battery and lead acid battery.
Web browser and mobile App monitoring supported.
Reliable.

PV lighting protection, Anti-islanding protection, Leakage current protection etc.
Support store energy from DG when needed, ensure the system working within 7*24H.
IP65 protection degree, adapt to indoor and outdoor using.
Automatically switch from on-grid to off-grid mode within 5ms.
Zero exporting function, fast reaction within 200ms in zero export mode.
Smart.

Programmable charging and discharging schedule.
Both wind turbines and solar panels can be connected as DC input power.
Max. 16 units can be paralleled for higher system power.
Retrofitting of existing solar system to energy storage system.
Battery Input Data

Battery Type: Lead-acid or Li-lon
Battery Voltage Range (V): 40-60V
Max. Charging Current (A): 120A
Max. Discharging Current (A): 120A
Charging curve: 3 Stages/Equalization
External Temperature Sensor: Optional
Charging Strategy for Lithium Battery: Self-adaption to BMS
PV String Input Data

Max. DC Input Power (W): 6500W.
PV input Voltage (V): 370V (100V-500V).
MPPT Range (V): 125-425V.
Start-up Voltage (V): 150V.
PV Input Current (A): 11A + 11A.
No. of MPPT Trackers: 2
No. of Strings Per MPPT Tracker: 1+1.
AC Output Data

Rated AC Output and UPS Power (W): 5000W
Max AC Output Power (W): 5500W
Peak Power(off-grid): 2 times of rated power, 10 S.
AC Output Rated Current(A): 21.7.4A
Max.AC Current(A): 25A
Max Continuous AC Pass-through(A): 35A.
Output Frequency and Voltage: 50Hz; 240Vac,
Grid Type: THD<3%(Linear load<1.5%). Current Harmonic Distortion: THD<3% (Linear load<1.5%). Efficiency Max. Efficiency: 97.60% Euro Efficiency: 96.50% MPPT Efficiency: 99.90% Protection PV Arc Fault Detection: Integrated (Except European Type) PV Input Lightning Protection: Integrated Anti -islanding Protection: Integrated PV String Input Reverse Polarity Protection: Integrated Insulation Resistor Detection: Integrated Residual Current Monitoring Unit: Integrated Output over Current Protection: Integrated Output Shorted Protection: Integrated Output over Voltage Protection: Integrated Certifications and Standards Grid Regulation: UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IE61727 Safety Regulation: IEC62109-1, IEC62109-2 EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B General Data Operating Temperature Range ( C ): -25—60 C , >45 C Derating
Cooling: Fan
Noise (dB): <30 Communication with BMS: RS485; CAN Weight (kg): 20.5 Size (mm): 580 X 330 X 208mm Protection Degree: IP65 Installation Style: Wall-mounted Warranty: 5 years
