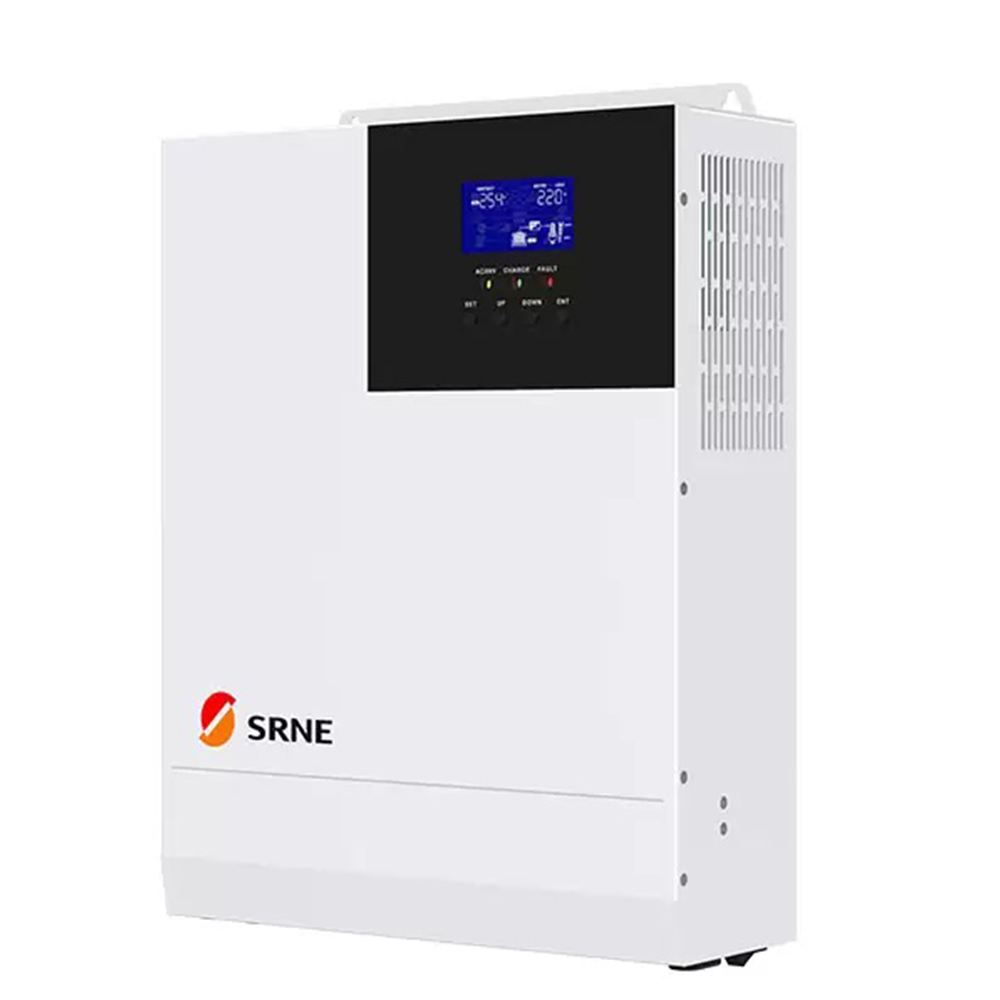

- Model HF4850S80-H
- AC MODE
- Rated input voltage: 220/230Vac
- Input voltage range: 170Vac~280Vac) ±2%/(90Vac-280Vac)±2%
- Frequency: 50Hz/ 60Hz (auto-sensing)
- Frequency Range: 47±0.3Hz ~ 55±0.3Hz (50Hz)/57±0.3Hz ~ 65±0.3Hz (60Hz);
- Overload/short circuit protection: Breaker
- Efficiency: >95%
- Conversion time (bypass and inverter): 10ms (Typical value)
- AC reverse protection
- Maximum bypass overload current: 40A
- Inverting mode
- Output voltage waveform: Pure sine wave
- Rated output power(VA): 5000
- Power factor: 1
- Rated output voltage (Vac): 230Vac
- Output voltage error: ±5%
- Output frequency range (Hz): 50Hz ± 0.3Hz/60Hz ± 0.3Hz
- Efficiency: >90%
- Overload protection: (102% < load <125%) ±10%: report error and turn off the output after 5 minutes;(125% < load < 150%) ± 10%: report error and turn off the output after 10 seconds;Load >150% ±10%: report error and turn off the output after 5 seconds;
- Peak power: 10000VA
- Loaded motor capacity: 4HP
- Output short circuit protection: Circuit Breaker
- Bypass breaker specifications: 40A
- Rated battery input voltage: 48V (Minimum starting voltage 44V
- Battery voltage range: Undervoltage alarm/shutdown voltage/overvoltage alarm /overvoltage recovery… settable on LCD screen)
- Power saving mode: Load ≤25W
- AC charging
- Battery type: Lead acid or lithium battery
- Maximum charge current: 80A
- Charge current error: ± 5Adc
- Charge voltage range: 40-60Vdc
- Short circuit protection: Circuit breaker and blown fuse
- Circuit breaker specifications: 40A
- Overcharge protection: Alarm and turn off charging after 1 minute
- PV charging
- Maximum PV open circuit voltage: 500Vdc
- PV operating voltage range: 120-500Vdc
- MPPT voltage range: 120-450Vdc
- Battery voltage range: 40-60Vdc
- Maximum output power: 5000W
- PV charging current range (can be set): 0-80A
- Charging short circuit protection: Blown fuse
- Wiring protection: Reverse polarity protection
- Certified specifications
- Certification: CE(EN62040-1)
- EMC certification level: EN62040-2, C2
- Operating temperature range: -15°C to 55°C
- Storage temperature range: 25°C ~ 60°C
- Humidity range: 5% to 95% (Conformal coating protection)
- Noise: ≤60dB
- Heat dissipation: Forced air cooling, variable speed of fan
- Communication interface: USB/RS485(Bluetooth/WiFi/GPRS)/Dry node control
- Size (L*W*D): 426mm*322mm*126mm
- Weight (kg): 11
- Product overview
- HF48-H series is a new all-in-one hybrid solar charge inverter, which integrates solar energy storage &means charging energy storage and AC sine wave output. Thanks to DSP control and advanced controlalgorithm, it has high response speed, high reliability and high industrial standard
- PERFORMANCE CHARACTERISTICS
- ·Adopt full digital voltage and current double closed-loop control and advanced SPWM technology to output pure sine wave. ·Two output modes, i.e. mains bypass and inverter output can achieve uninterrupted power supply function. ·Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging. ·Advanced MPPT technology, with efficiency up to 99.9%. ·Wide MPPT voltage range, 120-450vdc. ·There is no commercial power or battery, and the solar energy has independentloading function. ·With function of activating lithium battery with solar energy and AC mains power,it supports connection of lead-acid battery and lithium battery. ·LCD screen design and 3 LED indicator lights dynamically display system data andoperation states. ·ON/OFF rocker switch can control AC output. ·With power saving mode function, it can reduce no-load loss. ·Intelligent adjustable speed fan is adopted for efficient heat dissipation and extended system life. ·Possessing multiple protection functions and 360° comprehensive protection. ·Possessing complete short circuit protection, overvoltage and undervoltage protection, overload protection, back filling protection, etc.
